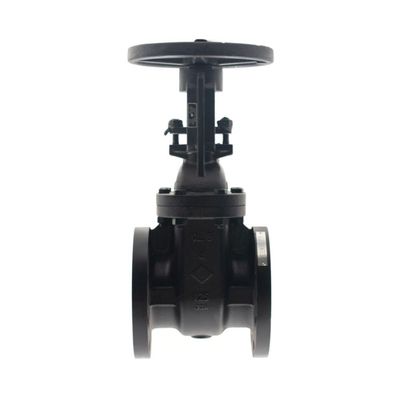

8" CRANE® 465-1/2 Gate Valve, Flanged End Style, 125 lb, Cast Iron Body, Handwheel Actuator

8" CRANE® 465-1/2 Gate Valve, Flanged End Style, 125 lb, Cast Iron Body, Handwheel Actuator

Back to catalog
$3,307.87
In stock
Product Details
UPC: 465-1/2-8
Brand: CRANE

SPECIFICATIONS

Brand: CRANE®
Weight: 280lbs
Nominal Size: 8 in
End Style: Flanged
Pressure Class: 125 lb
Body Material: Iron
Softgoods Material: Braided Flexible Graphite with Corrosion Inhibitor Packing
Actuator Type: Handwheel
Hand Wheel Diameter: 14 in
Inlet to Outlet Length: 11-1/2 in
Manufacturer Name: Crane ChemPharma Energy
Pressure Rating: 200 psi
Series: 465-1/2
Temperature Rating: -20 to 100 deg F
Top to Inlet Center: 37-3/4 in
Trim Material: Manganese Bronze
Standards and Approvals: ASTM A126 Class B Body | ASTM B584 C86400 Stem | MSS SP-70 Type 1

ITEM FEATURES

  • Bolted bonnets
  • Outside screw and yoke
  • Fully rated to ASME and MSS-SP Standards
  • Full pressure class offering: Class 125, Class 150, class 250, and Class 300
  • Complete size range availability from 2 through 24 in
